Hydraulic Electrical Roll Shutter Door Forming Machine With PLC Control System

Model Number : Shutter door machine

Certification : BV,SGS, CE,ISO9001

Place of Origin : Botou,Hebei Province

MOQ : 1 Set

Payment Terms : Western Union, T/T, L/C

Supply Ability : 30 SETS / MONTH

Delivery Time : 30 Working days

Packaging Details : Main body of machine is naked into the container, we can also provide plastic film if you need.

Condition : New

Use : Tile Forming Machine

Tile type : Colored Steel

Production : 8-12 m/min

Power : 4 + 4 kw

Voltage : 380 v, 50 Hz, 3 phase

Demension : 4400mm*1200mm*1100mm (L*W*H)

Weight : About 2.5t

After-sale service : Engineers available to service

Machine color : Can paint as clients' requireme

Price : Negotiation

Contact Now

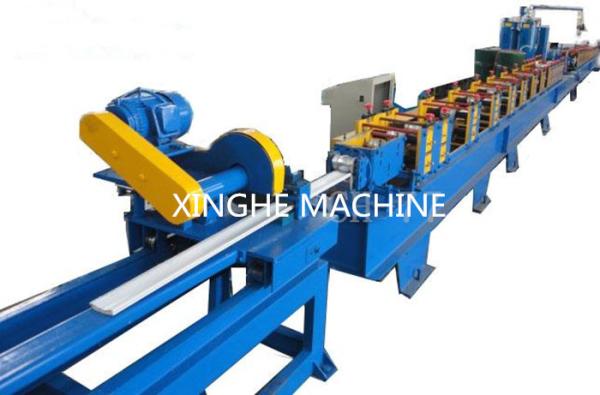

Machine picutes

Hydraulic Electrical Roll Shutter Door Forming Machine With PLC Control System

Equipment technical parameters

Molding host	Model	Shutters slat roll former
	Forming size	4500mm1500mm1300mm
	weight	2.5 T
	Host big frame structure	Frame welded
	Roll station	14 row
	Axial material	45# steel
	Out diameter of shaft	Φ75mm
	Roller materials	45# steel hard chromium plating
	Drive	By chain
	Sprocket chain	1 inch
	Main power	4 + 4 kw
	Working speed	8-12 m/min
	Material thickness	0.3-0.8mm
	Made board	25mm

Hydraulic shearing

Material of blade

Cr12,heat treatment 60-62HRC

Shearing system

shutters slat forming machine is controlled by gear wheel oil pump. After

filling the hydraulic oil into the hydraulic oil tank,

the pumps drive the cutter machine to begin the

cutting job.

The system includes a set of hydraulic tank, a

set of hydraulic oil pump, two hydraulic pipes.

And two sets of electromagnetism valves.

Power of the oil pump: 4.0kw

Hydraulic oil :40#

Electrical system

Main computer

control cabinet

shutters slat roll former adopts industrial computer to control. The target piece’s

length is adjustable and digit of it can be adjusted. Computer

mode has two modes: automatic and manual one. The system

is easy to operate and use.

Processing precision : within 1.00mm

It contains liquid crystal screen, programmer, transformer

for the electronic machines and kits of every part.

Transducer brand is EURA.

The seller will provide Chinese and English language screen.

Shutter door sizes for choice

Hydraulic Electrical Roll Shutter Door Forming Machine With PLC Control System
